6e5p tetrode and Derke model

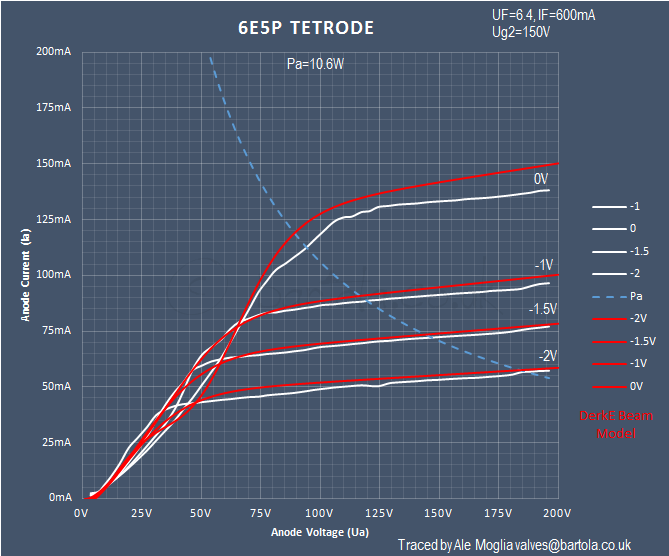

6e5P tetrode curves and matching DerkE beam model. Traced with uTracer v3 and model by ExtractModel v1.031
